HOME / PRODUCTS/ Crushers

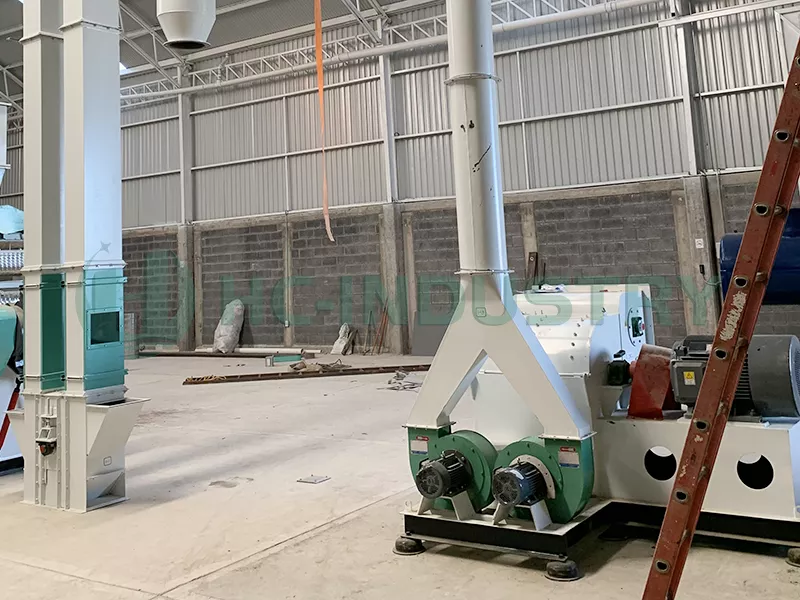

Shearing Milling Machine

HC-FS Series
Available Materials : palm fiber, grass and straw, etc.
Model : HC-FS60, HC-FS80
Main Power : 30kw, 45kw
Capacity : 0.8-1.5 tons/hour
Application : Small to medium-scale shredding production.

PRODUCT DETAILS

Introduction
HC-Industry Combined Shearing Milling Machine is used to shred different kinds of palm fiber, grass and straw materials into particle size. It adopts special combined shearing milling structure and design which are different from traditional Hammer Mill. It is widely used in straw and grass pelletizing production.
The capacity of HC-Industry Combined Shearing Milling Machine is from 0.8-1.5 tons/hour, depending on the type of machine and raw material.
Working Principle
A Feeding Belt Conveyor transport straw materials into the shearing room. Under the influence of shearing force(fixed blade and movable blade), the straw are shredded into piece size. Then transport them to the milling room, the pieces of straw are milled by repeated blows of hammers. Finally, they are sucked by a air-blower and discharge through a cyclone and air-lock.
Advantage
1. Adopt combined shearing milling structure design.
2. Reasonable structure, reliable performance, easy installation, operation and maintenance, large capacity, low power consumption.
3. Durable blades, hammers and screen.
4. Soft-start system and overload protection in electrical cabinet.
Technical Data
Model Power (kw) Capacity (ton/hour) Size of Finished Products (mm) Dimension (mm)
HC-FS60 30+1.1+1.1 0.8-1.2 2-3 3575*1470*1275
HC-FS80 45+1.1+1.1 1.2-1.5 2-3 3790*1793*1325
