Continuous Carbonization Furnace

Raw materials: wood shavings, peanut shell, straw, nut shell, tree bark, coconut shell and palm shell and other various biomass wastes
Model: HC-THL0814,HC-THL1015, HC-THL1218, HC-THL1520
Capacity: 500 - 900kg/h
Application: produced charocal for various aims, like barbecue, domestic heating, producing active carbon and etc.

info@hcpellet.com

+86 18695822517

Free Consulting Online

PRODUCT DETAILS

Introduction

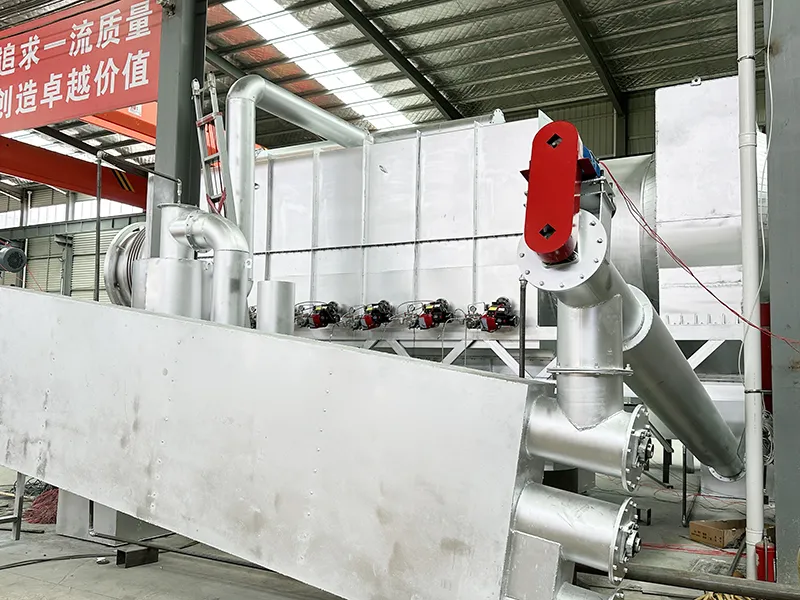

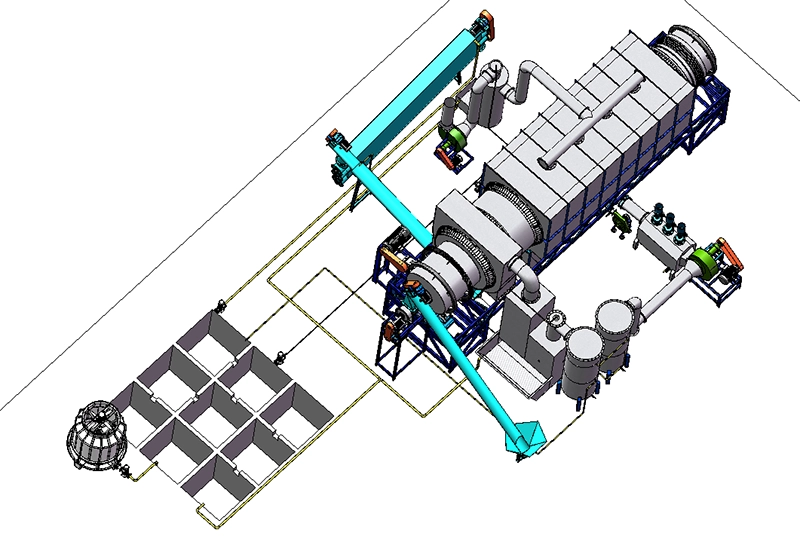

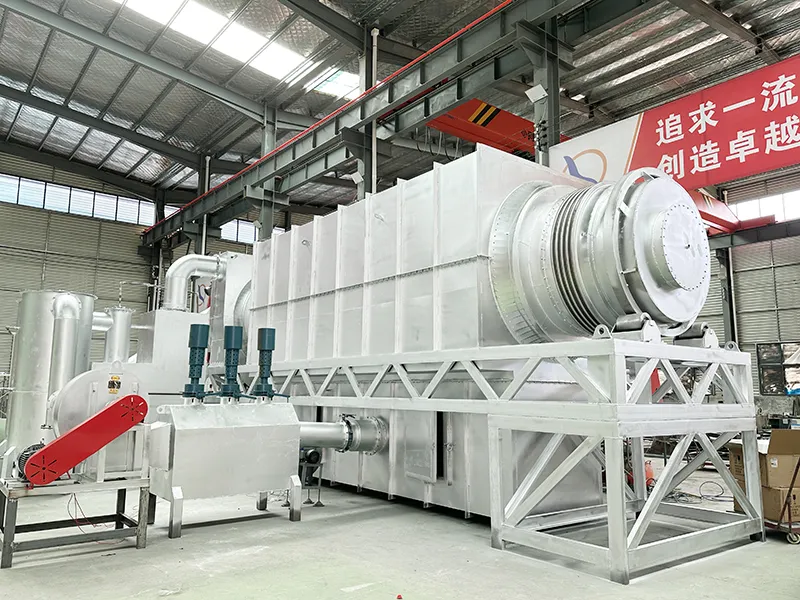

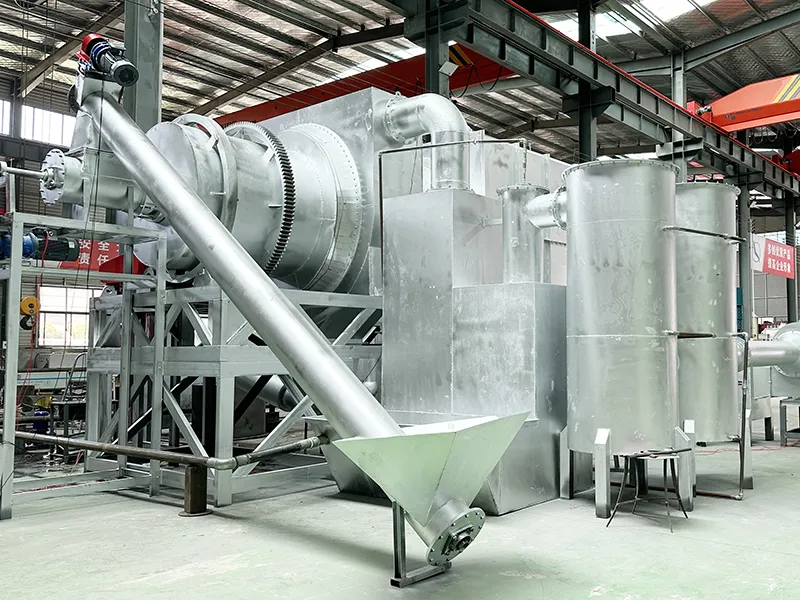

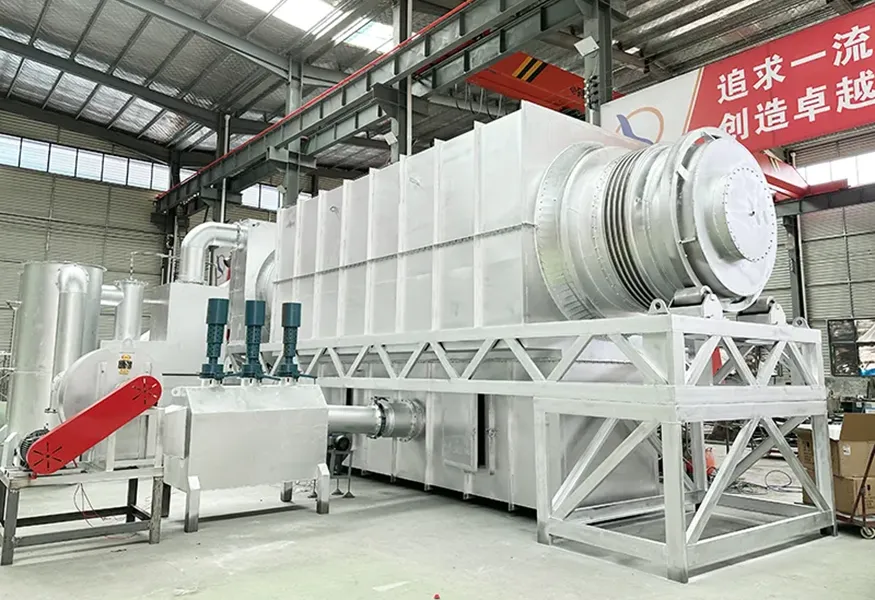

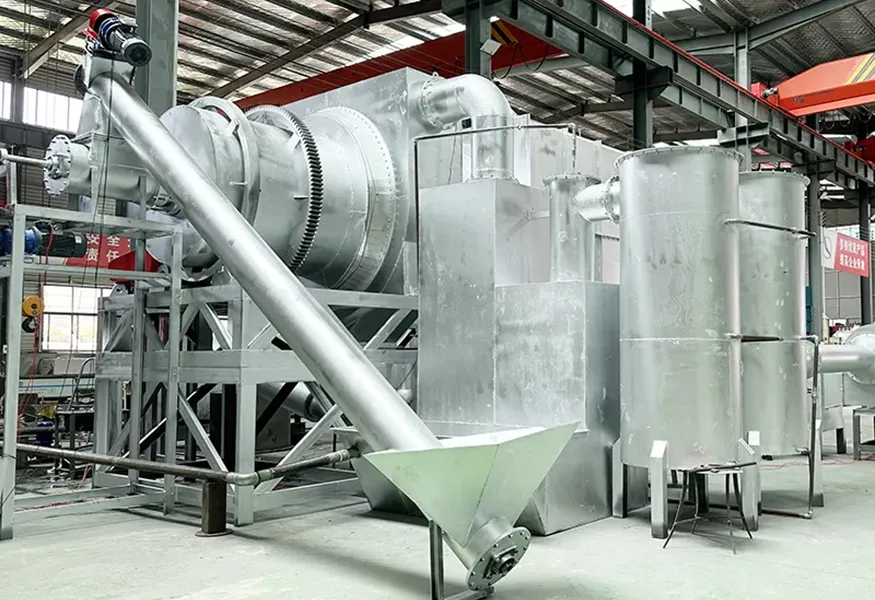

Continuous carbonization furnace is a kind of continuous carbonization machine which integrates rotary drum carbonization furnace and combustible gas recycling unit into one body. It is composed of conveyor, high-temperature furnace, dust removal, coke removal, purification, gas cabinet, distribution cabinet and other equipment. This series carbonization furnace can be used to carbonize wood shavings, peanut shell, straw, tree bark, coconut shell, palm shell and other various biomass wastes. Moisture of materials to be carbonized shall be lower than 15%. Final discharged product holds good quality and carbon content is higher than 80%. Continuous Carbonization Furnace produced by HC-Industry can meet different customers' demands.

Wood

Sawdust briquette

Bamboo

Coconut shell

Palm shell

Walnut shell

Wood sawdust

Rice husk

Finished products:

Wood charcoal

Sawdust briquette charcoal

Bamboo charcoal

Coconut shell charcoal

Palm shell charcoal

Walnut shell charcoal

Wood sawdust charcoal

Rice husk charcoal

Biomass Carbonization Plant Process

Biomass Carbonization Plant Process:
- Biomass feedstock: includes sawdust, wood chips, rice husks, straw, coconut shells, palm shells, etc.
- Material size requirement before carbonization: less than 20mm
- Material moisture requirement before carbonization: less than 15%

Biomass materials → Crushing → Mixing → Drying → Carbonization → biochar

Technical Data

Model	Total Power	Output	Floor area	Maximum external dimensions
HC-THL0814	42 kW	100-200 kg	300 m²	8100×2000×2500 mm
HC-THL1015	49 kW	200-300 kg	360 m²	9000×2200×3400 mm
HC-THL1218	54 kW	300-600 kg	480 m²	11250×2800×4000 mm
HC-THL1520	59 kW	600-1000 kg	600 m²	12500×3000×4500 mm

SERVICE

Our skilled technicians and engineers are available to assist you.

Consultation

Consulation and Analysis
HC-Industry designs and produces complete biomass pellet and briquette plant, offers solutions for the global renewable energy sector. Its business is based on meeting the requirements of forestry groups, energy companies, wood industries, and industrial as well as financial investors in biofuel pellet and briquette plants.

Design

According to the required technical answers you provide, we will make an optimum proposal for you, including the following items:
Basic layout of complete plant
Description of production process
List of all equipment with technical specification and pictures
Price for each part of equipment
Total price of plant
Total required power for complete plant
Required number of containers for transport of this plant
Delivery time
Warranty period
Way of payment

Manufacture

China has become the global center for biomass equipment manufacturing and processing, with a huge die forging workshop, advanced ring die vacuum quenching furnace, and a complete production chain including several auxiliary equipment manufacturers. HC-Industry has demonstrated its professional strength in the field of biomass equipment manufacturing with independent modern CNC machining centers and the adoption of internationally advanced technologies. HC-Industry is also equipped with professional equipment including CNC laser cutting machines, CNC bending machines, flame cutting machines, automatic submerged arc welding machines, CNC shearing machines, etc., ensuring the high efficiency of the production process and the excellence of product quality.

Installation & Training

If necessary, we can send a technical team oversea to guide your installation and support you start up the line. Generally, including 2 mechanical engineer,1 electrician and 1 translator. It will take about 30-40 days to finish the installation in general. After installation, we will take charge of the single equipment debugging, whole line debugging, and test running with materials. We also provide clients with testing data reports of installation and operation for confirmation. We will ensure all the line can regularly run under the condition of full load before our technical team leave.
Well trained staff is essential for the safe operation of a plant, for this reason, we have developed different types of training for customers:
In-house training
- Maintenance training
- Training in our pilot plant
On-site training
- Operative and Comprehensive training
- Maintenance training on your machines

Maintenance

High availability and long service life are important factors for economic operation of the plant. Regular maintenance of the plant can prevent problem and increase availability. It is a honor to prepare maintenance plans and provide technical support of the maintenance work for you.

Spare Parts

We supply our spare parts base on customer’s requirements. To ensure long term security, we can normally provide spare parts for new and old machines.
