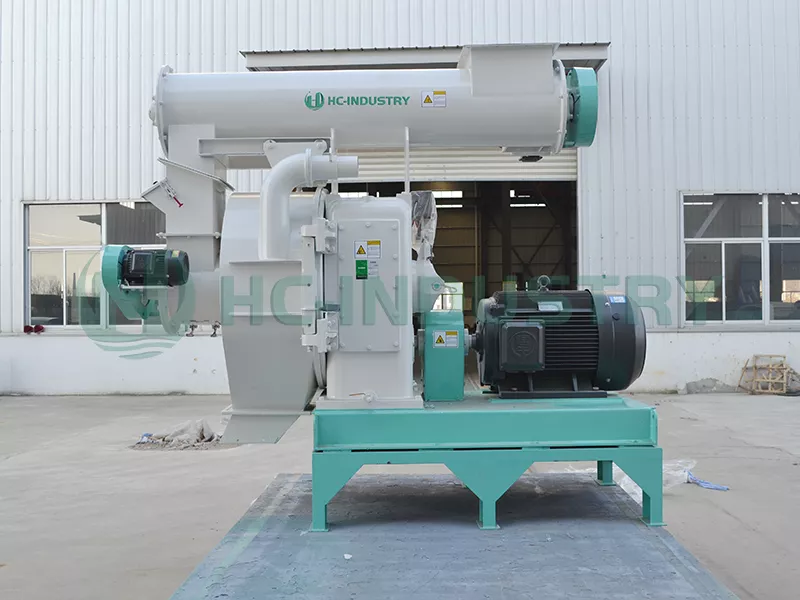

Ring Die Pellet Mill

HC-PM Series

Available Materials : wood waste, EFB(palm fiber), straw, rice husk, bamboo, sugarcane bagasse, etc.
Model : HC-PM420, HC-PM508, HC-PM510
Main Power : 90kw, 110kw, 132kw
Capacity : 1-3 tons/hour
Application : Medium to large-scale pellet production.

info@hcpellet.com

+86 18695822517

Free Consulting Online

PRODUCT DETAILS

Introduction

Ring Die Pellet Mill is used in medium to large-scale pellet production in biomass industry.
HC-Industry Pellet Mill has a modular design, and it can be adapted perfectly to diverse raw materials and requirements.
They are widely used to process wood waste, EFB(palm fiber), straw, rice husk, bamboo, sugarcane bagasse,mushroom residue, forage grass, cotton residue, cassava, etc.

wood logs

cassava

wood sawdust

bamboo

wood logs

straw

wood sawdust

palm EFB

Finished biomass pellets:

wood pellets

palm Fiber Pellets

rice husk pellets

cassava pellets

The capacity of HC-Industry Horizontal Ring Die Pellet Mill is from 1-3 tons/hour, depending on the type of machine and raw material.
All HC-Industry Pellet Mills have comprehensive standard and safety devices. This includes the permanent magnets, shear pins and overload protection, cooling system, soft-start system, safety switches and much more.

Advantages

1. CE approved by SGS.
2. HC-Industry Pellet Mill adopts high-precision gear-drive structure.
3. Ring Die adopts quick disassembly hoop design.
4. Main parts adopt imported FAG bearings.
5. Adopt international advanced horizontal compensation serpentine spring coupling.
6. Adopt aerodynamic technology and current round principle, HC-Industry invented a cooling system to match with HC-Industry pellet mill. It is used to reduce the temperature in pelletizing chamber, which ensures the Pellet Mill can continuously work, protect the moulds, electric motor and parts all the time.(avoid high temperature).
7. Strengthen the working intensity of main parts by materials selection, heat treatment and other technologies, which ensure the machine can meet the pelletizing requirements of diverse biomass materials.
8. Directly lubricate the main parts through main shaft without stopping the pellets production.
9. Soft-start system and overload protection in electrical cabinet.

Technical Data

Model	Main Power (kw)	Inner Diameter of Matrix (mm)	Capacity (ton / hour)	Driving Mode
HC-PM420	90	420	1-1.5	Gear
HC-PM508	110	508	1.3-1.8	Gear
HC-PM510	90	510	1.3-1.8	Gear

Remarks
The above capacity comes from 8mm biomass pellets production.
The final capacity of Pellet Mill depends on the features of raw materials, operation and maintenance,etc.
There are 2 rollers in the pressing chamber.

DOWNLOAD

Wood Pellet Plant

[ 3.1M / PDF]

Download

SERVICE

Our skilled technicians and engineers are available to assist you.

Consultation

Consulation and Analysis
HC-Industry designs and produces complete biomass pellet and briquette plant, offers solutions for the global renewable energy sector. Its business is based on meeting the requirements of forestry groups, energy companies, wood industries, and industrial as well as financial investors in biofuel pellet and briquette plants.

Design

According to the required technical answers you provide, we will make an optimum proposal for you, including the following items:
Basic layout of complete plant
Description of production process
List of all equipment with technical specification and pictures
Price for each part of equipment
Total price of plant
Total required power for complete plant
Required number of containers for transport of this plant
Delivery time
Warranty period
Way of payment

Manufacture

China has become the global center for biomass equipment manufacturing and processing, with a huge die forging workshop, advanced ring die vacuum quenching furnace, and a complete production chain including several auxiliary equipment manufacturers. HC-Industry has demonstrated its professional strength in the field of biomass equipment manufacturing with independent modern CNC machining centers and the adoption of internationally advanced technologies. HC-Industry is also equipped with professional equipment including CNC laser cutting machines, CNC bending machines, flame cutting machines, automatic submerged arc welding machines, CNC shearing machines, etc., ensuring the high efficiency of the production process and the excellence of product quality.

Installation & Training

If necessary, we can send a technical team oversea to guide your installation and support you start up the line. Generally, including 2 mechanical engineer,1 electrician and 1 translator. It will take about 30-40 days to finish the installation in general. After installation, we will take charge of the single equipment debugging, whole line debugging, and test running with materials. We also provide clients with testing data reports of installation and operation for confirmation. We will ensure all the line can regularly run under the condition of full load before our technical team leave.
Well trained staff is essential for the safe operation of a plant, for this reason, we have developed different types of training for customers:
In-house training
- Maintenance training
- Training in our pilot plant
On-site training
- Operative and Comprehensive training
- Maintenance training on your machines

Maintenance

High availability and long service life are important factors for economic operation of the plant. Regular maintenance of the plant can prevent problem and increase availability. It is a honor to prepare maintenance plans and provide technical support of the maintenance work for you.

Spare Parts

We supply our spare parts base on customer’s requirements. To ensure long term security, we can normally provide spare parts for new and old machines.

Optimizing your pelleting process

By answering a few questions about your personal situation we can quickly calculate the payback time for you.

Learn More

How to Select A Wood Pellet Mill

Learn More

Let Us Engineer a Pellet Solution For You

CONTACT

Customer Case

75% export, 60+ countries

South America 5TPH Wood Pellet Line

South America

Tonnage

5 t/h

Material

Wood chips of pine tree

End Use

Power Plant

Main Equipment

Main Equipment : 4 pcs of Hammer Mills, Rotary Dryer, 3 pcs of Pellet Mills, Cooler, Packing Machine, Conveyor, Bucket Elevator and other auxiliary equipment.

VIEW CASE STUDY

Southeast Asia 20TPH Wood Pellet Line

Southeast Asia

Tonnage

20 t/h

Material

wood chips of acacia tree

End Use

Export to Japan

Main Equipment

Main Equipment : 12 pcs of Hammer Mills, 4 sets of Rotary Dryers, 16 pcs of Pellet Mills, Cooler, Bagging Machine, Storage Silos, Conveyors, Bucket Elevators and other auxiliary equipment.

VIEW CASE STUDY

Movable Wood Pellet Line

Tonnage

500-1000 kg/h

Material

wood logs

End Use

Home heating

Main Equipment

Main Equipment : Sawdust Producer, Dryer, Pellet Mill, Cooler, Bagging Machine, Storage Silos, Conveyors, Pipes and other auxiliary device.

VIEW CASE STUDY

European 5TPH Wood Pellet Line

European

Tonnage

5 t/h

Material

wood logs of spruce tree

End Use

Power Plant

Main Equipment

Main Equipment : Debarker, Drum Chipper, 3 pcs of Hammer Mill, Rotary Drum Dryer, 3 pcs of Pellet Mills, Cooler, Automatic Bagging Machine, Storage Silos, Conveyors, Bucket Elevators and other auxiliary equipment.

VIEW CASE STUDY
